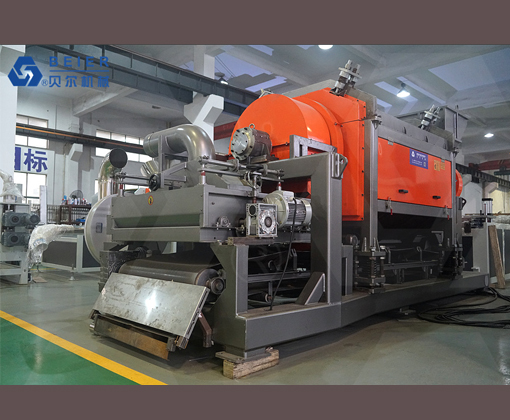

Agricultural/waste film recycling machine
Agricultural/waste film recycling machine applies to crush agricultural film and remove different kinds of impurities(dirt 、branches 、leaves 、etc.) in large quantity，at the same time it will keep the moisture content in a very low level, it would be very convenient for down stream process, pelletizing for instance .it can work alone ,or work as a part of production line .the main technical parameters are shown in table1
Table 1-- Main technical parameters
№ | Name | Value |
1 | Voltage（V） | 380+10%-15% |
2 | Current frequency（HZ） | 50±1 |
3 | Productivity decide on the impurity content and the condition of material（depending on wet or dry） kg/h | 500-700 |
4 | Outline dimension of the drum（mm） | 1048х2250 |
5 | Rotor speed,（r/min） | 327 |
6 | Rated power（Kw）: - rotor drive - screw drive - drum drive - belt conveyor - disc vibrating screen - pneumatic conveyor - dust removal fan - valve drive | 75,5 22 22 15 1,1 2,2 7,5 5,5 0,18 |
7 | Actual power（kw）: | 40 |
8 | Outline dimension(mm): - length - width - height Outline dimension of electric cabinet（mm）: - length - width - height | 5260 2684 2514 1500 550 1500 |
9 | Weight (without electric cabinet) （kg,less than） | 11000 |
2. Associated equipment
Table2–associated equipment of agricultural film clean production machine
№ | Name | quantity |
1 | Agricultural/waste film recycling machine | 1 |
2 | Electric cabinet | 1 |
3 | Set of bolts（fix the rotor and make it opposite to drum） | 1 |
4 | Operation instruction | 1 |
