Production Line Configuration |

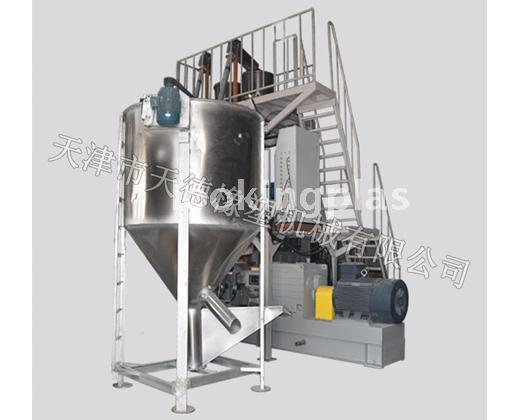

No. | Detail | Remarks |
1.0 | 5-group weight-loss & auto-metering feeding system |
1.1 | Granules feeding system |
|
1.2 | Granules filling bin |
|
1.3 | Weight-loss metering scale for granules | Origin: Shanghai Sonner |
1.4 | Powder feeding system |
|
1.5 | Powder filling bin |
|
1.6 | Weight-loss metering scale for powder | Origin: Shanghai Sonner |
1.7 | Controlling system | PLC + touch screen |
1.8 | Material rack platform |
|
2.0 | Composited foaming agent injection and metering system |
2.1 | CO2 injection and metering system | LEWA diaphragm pump E+H mass flow meter Explosion-proof motor & controlling system |
2.2 | Ethyl alcohol injection and metering system |
2.3 | HFCs foaming agent injection and metering system |
2.4 | Other foaming agent injection and metering system |
2.5 | Pipeline system |
|
2.6 | Controlling system |
|

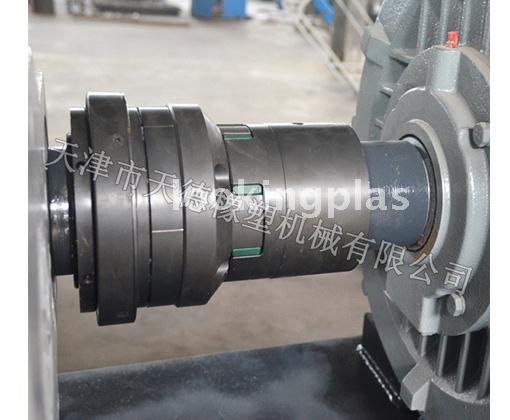

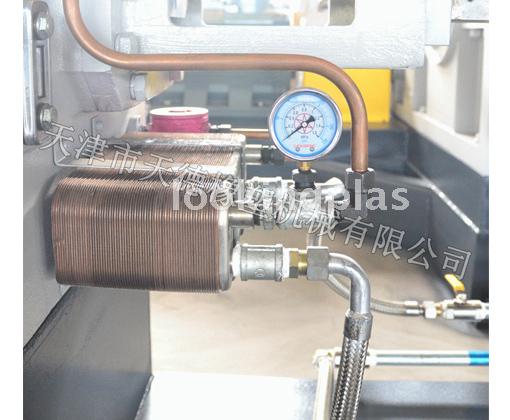

3.0 | Main engine: co-rotating twin-screw extruder |
3.1 | Static mixer | Centralized control + subdivision control SIEMENS PLC, touch screen, HMI interface Electric control cabinet safety standard: CE standard, flame-proof processing SIEMENS transducer, SCHNEIDER contactor, relay, low-voltage apparatus, breaker and button switch |
3.2 | Foaming main engine-efficient cooling single screw extruder |
3.3 | Dynamic melt heat exchanger |
3.4 | Static mixer |
3.5 | Die |
3.6 | Oil temperature control system |
3.7 | Integrated control system |
4.0 | Auxiliary equipments |
4.1 | Calibrating machine |
|
4.2 | Hauling machine |
|
4.3 | Cooling roller | Stainless steel roller, length 5000mm |
4.4 | Trimming machine |
|
4.5 | Peeling and grooving machine |
|
4.6 | Double-blade cutting machine | SCHNEIDER servo motor, controller, contactor and switch |
4.7 | Powered guide roller rack |
|
4.8 | Cooling rack | 232m length of board storable |
4.9 | Longitudinal trimming machine | SIEMENS PLC, transducer, SCHNEIDER contactor and switch |
4.10 | Horizontal trimming machine |
4.11 | Stacking machine | L(1200-3000)*W(600-1200)*H600mm |
4.12 | Powered guide roller rack |
|
4.13 | Packing machine | PE film, 4-side packing L(1200-3000)*W600*H600mm |
4.14 | Board storage rack |
|
4.15 | Electrical configuration |
|
5.0 | Recycling system |
5.1 | Φ150/Φ135 granulator, output 200kg/h | DELIXI air switch, contactor, relay, SCHNEIDER button |
5.2 | Pneumatic system | Main bunker, air flue installed by client, TENDE provides the design Client install main blower to branch pipe by the design of TENDE
|
