Feature & Function:

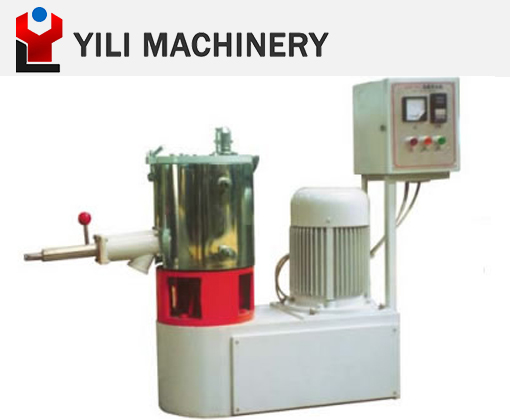

*SHR Series High-Speed Mixers are used in mixing, stirring, drying, coloring materials in plastics, rubber, and chemical industries.
*SHR series mixers adopt advanced design, so it is convenient and safe for operation. It offers small size, light weight, high efficiency, low energy consumption, and low noise.
Main Technical Parameter |
Model | Total Volume | Effective Volume | Motor Power | Main Shaft Speed | Heating Way | Unload Way |
SHR-5A | 5 | 3 | 1.2 | 1400 | Self-friction | manual |
SHR-10A | 10 | 7 | 2.2/3.2 | 750/1500 | Self-friction | manual |
SHR-25A | 25 | 17.5 | 5.5 | 1440 | 2KW | Pneumatic |
SHR-50A | 50 | 30 | 7/11 | 750/1500(510/1013) | 4KW | Pneumatic |
SHR-100A | 100 | 75 | 14/22 | 525/1050(650/1300) | 6KW | Pneumatic |
SHR-200A | 200 | 150 | 30/42 | 490/980 | 6KW | Pneumatic |
SHR-300A | 300 | 225 | 40/55 | 480/964 | 9KW | Pneumatic |
SHR-500A | 500 | 375 | 55/75 | 441/886 | 9KW | Pneumatic |
SHR-800A | 800 | 560 | 83/110 | 330/660 | Self-friction | Pneumatic |
SHR-200C | 200 | 150 | 30/42 | 650/1300 | 6KW | Pneumatic |
SHR-300C | 300 | 225 | 40/55 | 475/950 | 9KW | Pneumatic |
SHR-500C | 500 | 375 | 55/75 | 500/1000 | 9KW | Pneumatic |
SHR-800C | 800 | 560 | 83/110 | 330/660 | Self-friction | Pneumatic |
SHR-1000C | 1000 | 700 | 110/160 | 330/660 | Self-friction | Pneumatic |
SHR-1500C | 1500 | 1050 | 200/800enhanced | 0-660(inverter) | Self-friction | Pneumatic |
SHR-2000C | 2000 | 1400 | 315/450enhanced | 0-660(inverter) | Self-friction | Pneumatic |
