Malex are the well-known brand of air bubble film machinery and kraft paper bubble envelope machinery in China.
We are the professional supplier with latest technology and perfect after-sale-service.
Malex can manufacture the machine according to your requirement, such as width 1000mm-3000mm, 2 layers-7 layers bubble film, side extruder type or top extruder type, single-screw design or double-screw design.



Model | Max. Width | Screw Diameter(mm) | Screw & Barrel material | Capacity (kg/hr) | Line Speed (m/hr) | Heating Power (kW) | Consumption Power (kW) | Layer | Weight (kg) |
MX-W100D | 1000 | Φ55mm/Φ55mm | 38CrMOALA | 45-110 | 700-1800 | 55 | 25-32 | 2 | 5000 |
MX-W125D | 1250 | Φ55mm/φ55mm | 38CrMOALA | 55-110 | 700-1800 | 55 | 27-34 | 2 | 5800 |
MX-W150D | 1500 | Φ65mm/Φ65mm | 38CrMOALA | 70-130 | 700-1800 | 65 | 36-43 | 2 | 6500 |
MX-W160D | 1600 | Φ65mm/Φ65mm | 38CrMOALA | 75-130 | 700-1800 | 65 | 38-45 | 2 | 6700 |
MX-W200D | 2000 | Φ75mm/Φ75mm | 38CrMOALA | 90-150 | 700-1500 | 72 | 46-56 | 2 | 7500 |
MX-W250D | 2500 | Φ85mm/Φ85mm | 38CrMOALA | 115-200 | 700-1500 | 88 | 50-62 | 2 | 9800 |
MX-W300D | 3000 | Φ90mm/Φ90mm | 38CrMOALA | 135-230 | 700-1500 | 90 | 52-65 | 2 | 11000 |







Why Malex is your best choice?
1. Outstanding lineal speed & output.
Malex machine maximum lineal speed is 30m/min with stable quality and long-time running.
2. Screw design.
Malex screw is under special design can be worked with 100% recycled raw material. The screw is processed under tempering 850℃ for 4 hours.

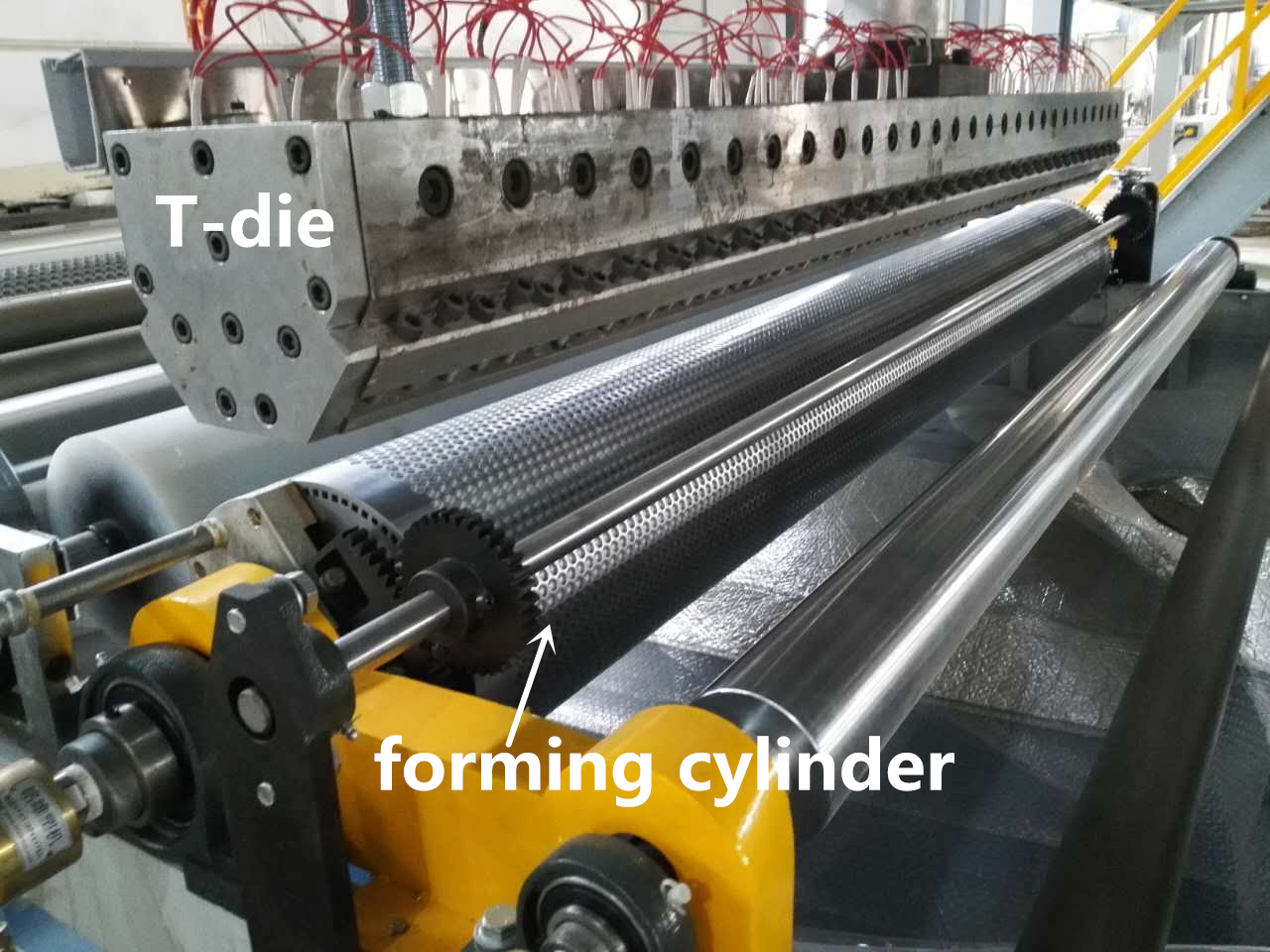

3. T-die design.
Malex T-die is processed with quenching and high temperature tempering HB230℃-260℃, control the thickness by bolts, all the film will be very even.
