PE water gas pipe extrusion line main features:
1.Well designed well made single screw extruder with high quality helical gear reducer and high efficiency converter motors, high output capacity;

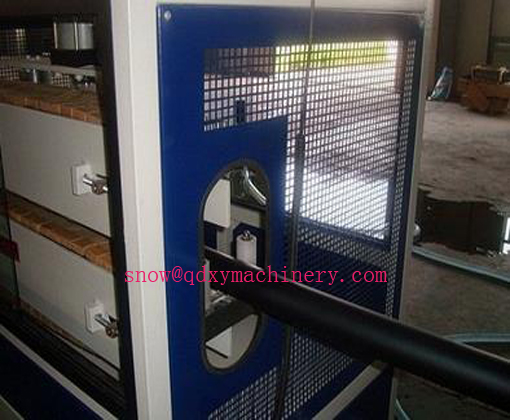

2.High precise spiral runners die head, tin bronze groove type vacuum calibrating sleeve, stable vacuum degree two chambers calibrating tank, high effective water spray cooling system, uniform speed and high traction force NBR caterpillar haul-off machine help making perfect PE pipes;
3.Whole line with high degree of automation, easy to operate;
4.High quality steel materials, strict producing process make high quality line;
5.New advanced energy saving designs, lowered energy consumption;
6.Whole line adopt newest design concept, using well known brand electrical components, enhanced line stability.
Line Main Technical Data:
Model/Spec. | Diameter range (mm) | Co-extruder model | Line speed (m/min) | Max output (Kg/h) | Installed power (kw) |
LSG65/33 | 20-110 | LSJ25/25 | 0.3-12 | 180 | 98 |
LSG75/33 | 63-160 | LSJ25/25 | 0.5-5 | 220 | 120 |
LSG90/33 | 160-400 | LSJ30/25 | 0.5-2 | 450 | 220 |
LSG120/33 | 355-630 | LSJ30/25 | 0.1-1 | 800 | 320 |
LSG150/33 | 400--800 | LSJ40/25 | 0.1-0.5 | 1200 | 450 |
