Brief introduction:

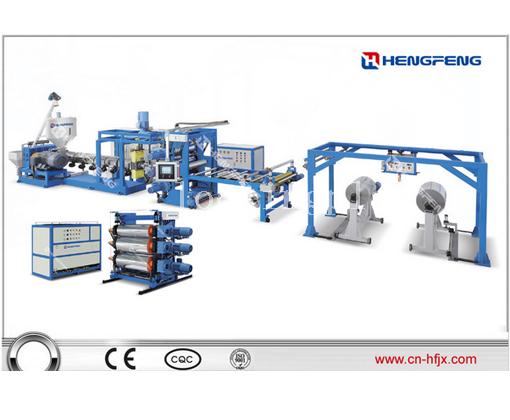

HFSJ series Extrusion designed for high plasticzing.high yield and a variety for productions requirements,equipped with well-known brands parts ensure effciency and stability.
Applied Materials:
Suitable for produce various plastic sheet of PP,HIPS etc, which can be widely used for plastic packing products industry.
Features:
1.Optimize design,easy operation and maintenance.
2.High degree of automation,man-interface for easy operation.
3.Screw with good plasticizing and high output after optimize design.
4.Extrusion Non-stop production.
5.Spiral groove design of calender roller with good cooling.
6.Calender design with independent temperature controller system.
7.Dragon type rewinder with maximum sheeting rolling dia.1500mm.
Main technical parameter:
Model | HFSJ-100 | HFSJ-120 | HFSJ-150 |
Main extruder diam | 100mm | 120mm | 150mm |
Screw L/D | 33:1 | 33:1 | 33:1 |
Max capacity PS | 300kg/h | 520kg/h | 800kg/h |
Extruding motor power | 75kw | 132kw | 200kw |
Max sheet width | 750mm | 750mm | 850mm |
Valid t-die width | 850mm | 850mm | 1000mm |
Sheet thickness range | 0.3-0.2mm | 0.3-205mm | 0.4-2.5mm |
Roller diameter | 400X1000mm | 500X1000mm | 600X1200mm |
Machine installed power | 160kw | 220kw | 350kw |
Overall dimension | 14X2.5X4m | 15X3X4.5m | 64X3.5X4.8m |
