Quick Detail:
Pe pipe vacuum and spray tank
Stainless steel made
CE& ISO certificate
Description:

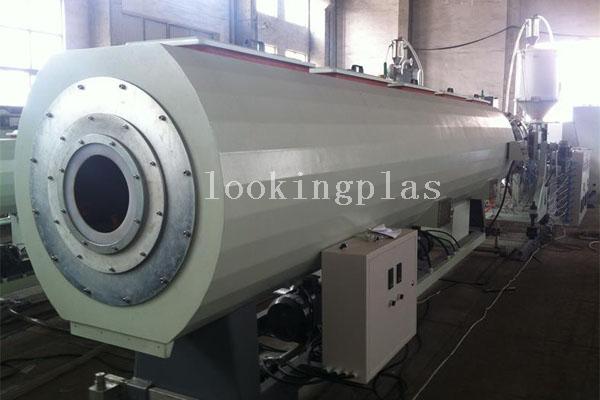

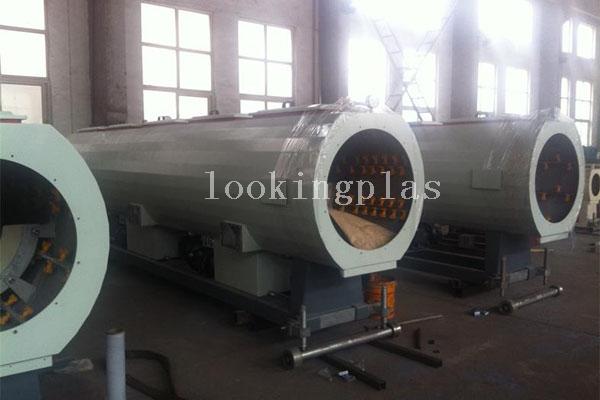

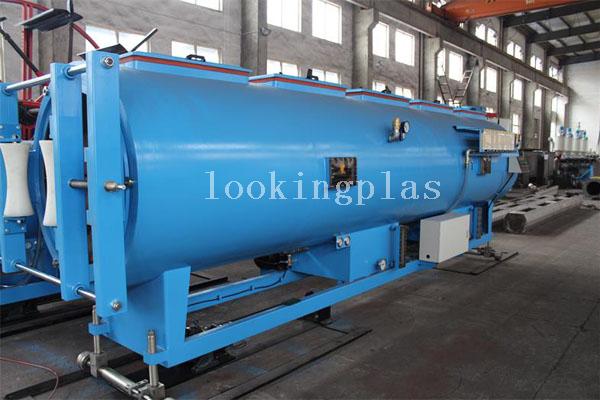

This vacuum calibrating bench barrels being made of stainless steel.Is divided into two sections, front and back end is vacuum cooling and spray cooling.Stainless steel ball float water level regulation, the structure is simple and practical.Nozzle materials for ABS engineering plastics.Rack 3 d adjustable, before and after the mobile adopts cycloidal reducer drive, up and down and around adopts screw pair of regulation.Barrel body with wheel mechanism;Which can effectively prevent sagging phenomenon.
Applications:
The vacuum calibrating tank is a necessary part in pipe production line.
It can help pipes form stable and fast.
The vacuum calibrating tank is of high quality and easy operation.
We have many diffierent types of vacuum calibrating tank for customers to make a proper choice
Specifications:
Model | 63 | 63-s | 125 | 250 | 450 | 500 | 630 | 800 | 1200 | 1400 | 1600 | 2000 |
Pipe range (mm) | 16-63 | 16-63 | 32-125 | 63-250 | 110-450 | 160-500 | 250-630 | 315-800 | 630-1200 | 710-1400 | 1000-1600 | 1400-2000 |
Water pumps (kw) | 3 | 2*2.2 | 2*2.2 | 2*3 | 2*4 | 2*5.5 | 2*7.5 | 3*7.5 | 4*7.5 | 5*7.5 | 6*7.5 | 6*7.5 |
Vacuum pumps (kw) | 2.2 | 2*1.5 | 2*2.2 | 2*4 | 2*5.5 | 2*5.5 | 2*5.5 | 3*5.5 | 4*7.5 | 5*7.5 | 6*7.5 | 6*5.5 |
Length of vacuum calibration tank | 6000 | 1500+8500 | 1500+10500 |
|
|
|
|
|
|
|
|
|
Competitive Advantage:
The vacuum calibrating tank is a necessary part in pipe production line.
It can help pipes form stable and fast.
The vacuum calibrating tank is of high quality and easy operation.
we has many different types of vacuum calibrating tank for customers to make a proper choice
