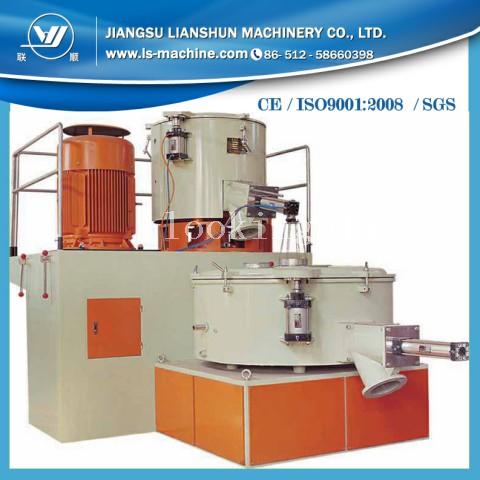

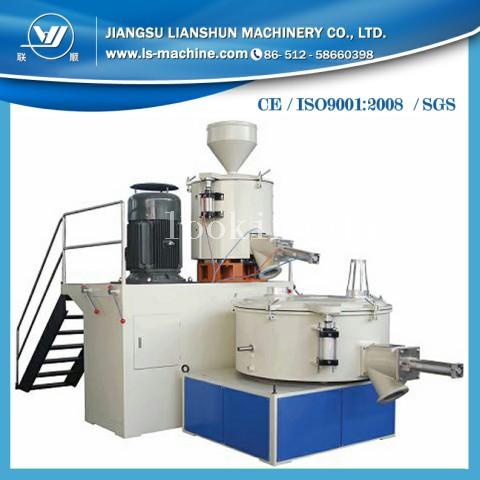

High quality SRL-Z 500/1000 A powder mixier unit
The equipment is used in mixing, drying, coloring and other processing, the production of profiles and pipes, all complete production equipment extrusion lines.
Feature:
1.Hot mixing has two ways,one is self-friction and another is electric heating work .
2.Using two sealed lid, cooling machine adopts arch cover lid, to avoid distortion.
3.PVC high speed cold hot mixer is stable, good performance.
They have been through a dynamic balance and static equilibrium in accordance with national standards test.
SRL-Z | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool |
Total volume (L) | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective capacity (L) | 150/320 | 225/380 | 330/750 | 600/1050 |
Stirring speed (RPM) | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
Mixing time (Min.) | 8-15min | 8-15min | 8-15min | 8-15min |
Motor power (KW) | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Overall dimension(mm) | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
Weight(kg) | 3400 | 3600 | 6500 | 9800 |
