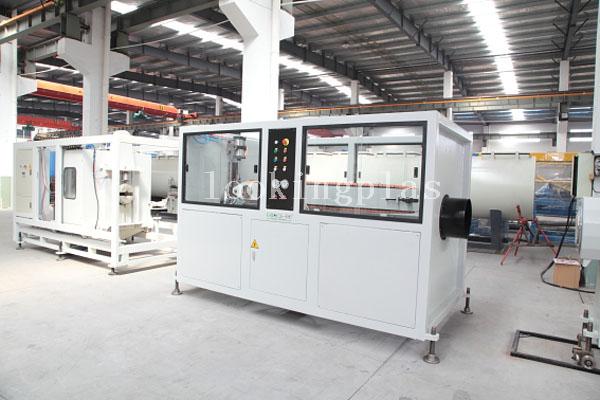

Quick Detail:
PVC pipe haul off machine , we have 2 claw, 3 claw, 4 claw,6 claw haul off machine
Description:
the machine adopts frequency control of motor speed, traction adopt gear reducer under direct transmission, through the adjustment of the frequency converter to ensure a uniform speed;Pneumatic pressure, use the "V" high coefficient of friction is special rubber pieces.
Applications:
This machine use the mod of double track cranes draw,silicon controlled stepless speed regulating.
It’s mainly matched with plastic extruder,use to extrude and haul every kind of plastic pipe,
hollow profile and soft pipe,it’s used widely and easily.
Specifications:
Electrical part :
The frequency governor imported ABB or Japan Hitachi;East battery digital tachometer;The French schneider ac contactor, button, indicator light.
The machine adopts frequency control of motor speed.The traction frame use chain points, make sure that the drawing speed is consistent, flexible pneumatic compression, using arrange ushering bearing structure, can effectively reduce the installation error.The v-shaped high coefficient of friction rubber pieces.
Model | Range of traction tubing(mm) | Number of traction belts(mm) | Drive motor power(kW) | Peak traction(N) | Max speed(m/min) |
32 | 6-32 | 2 | 2×0.75 | 3000 | 30 |
75 | 16-75 | 2 | 2×1.1 | 10000 | 15 |
160 | 20-160 | 2 | 2×1.5 | 15000 | 10 |
250 | 50-250 | 3 | 4 | 20000 | 3.5 |
315 | 75-315 | 4 | 5.5 | 25000 | 3 |
450A | 110-450 | 4 | 5.5 | 25000 | 2 |
450B | 110-450 | 4 | 5.5 | 30000 | 1.2 |
630A | 200-630 | 6 | 7.5 | 35000 | 1.4 |

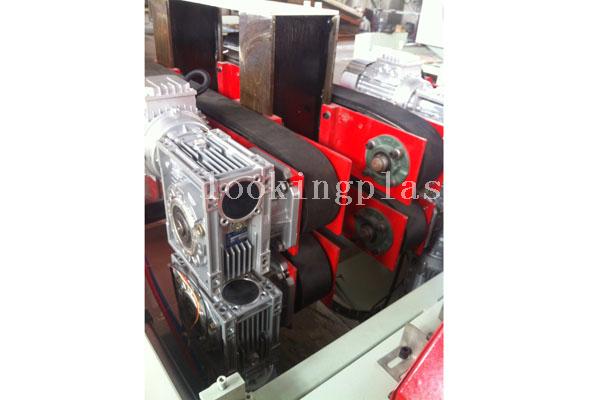

2 claw haul off machine
1、parameter： |
Claw no.： | 2 |
Effective haul off length ：（mm） | 1000 |
Haul off motor power：（kw） | 1.1×2 set |
2、main configuration： |
reducer： | Redsun gear speed reducer |
Electrical part： |
The frequency governor imported ABB or Japan Hitachi;East battery digital tachometer; The French schneider ac contactor, button, indicator light. |
3、introduce ： |
On the way: the machine adopts frequency control of motor speed, traction adopt gear reducer under direct transmission, through the adjustment of the frequency converter to ensure a uniform speed;Pneumatic pressure, use the "V" high coefficient of friction is special rubber pieces. |
Three claw haul off machine
1parameter、： |
Claw no： | 3 |
Effective haul off length：（mm） | 1600 |
Haul off motor：（kw） | 1.1×3 set |
2、main configuration： |
reducer： | Redsun gear speed reducer |
Electrical system： |
The frequency governor imported ABB or Japan Hitachi;East battery digital tachometer; The French schneider ac contactor, button, indicator light. |
3、equipment introduce： |
The machine adopts frequency control of motor speed.The traction belt adopts gear reducer direct drive, ensure consistency of drawing speed.On track for pneumatic compression, the crawler for electric adjustment scale range, the V high coefficient of friction rubber pieces. |

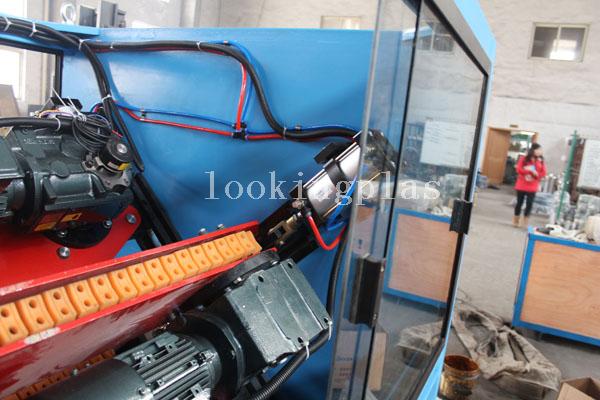

Foul claw haul off machine
1、main parameter： |
Claw number： | 4 |
Haul off length ：（mm） | 1600 |
Haul off speed：（m/min） | 0．2-2 |
Max traction：（KN） | 16000 |
Center height：（mm） | 1100 |
Motor power：（Kw） | 5.5 |
2. Main configuration： |
name： | factory： |
motor： | Siemens Beide motor |
reducer： | Hangzhou reducer factory |
Electrical system |
Japan's Fuji frequency conversion governor
Schneider company low-voltage circuit breaker
Schneider company ac contactor, button, indicator light Taiwan tiande connector |
3、equipment introduce： |
The machine adopts frequency control of motor speed.The traction frame use chain points, make sure that the drawing speed is consistent, flexible pneumatic compression, using arrange ushering bearing structure, can effectively reduce the installation error. The v-shaped high coefficient of friction rubber pieces. |
Competitive Advantage:
Use double track crane to haul.
Widely use stopless speed regulating,the area of speed regulating is big,the speed of hauling is equality,low-noise,compact structure,beautiful appearance.
