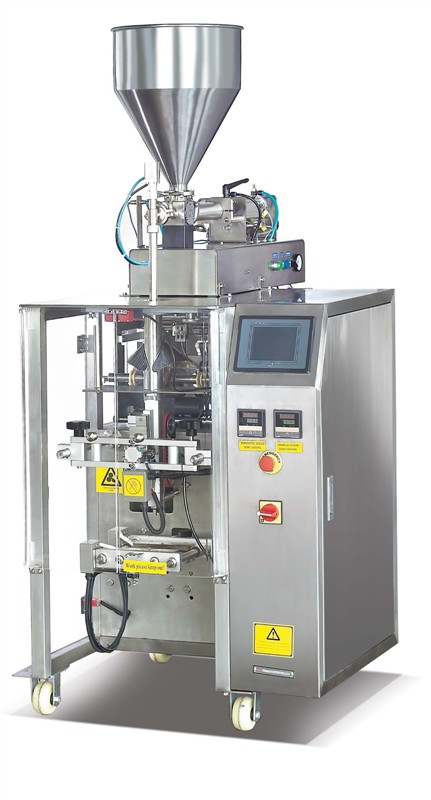

peanut butter packing machine Liquid Filling Machine Automatic packaging machine
Main features：
1、 low input, high return, high speed, high efficiency.
2 、imported PLC full computer control system, man-machine interface, large display touch screen, easy to operate.
3、 servo system, horizontal seal pneumatic control, accurate positioning, excellent performance, the maximum limit of improving the reliability and intelligence of the whole machine.
4.、The machine and metering device to be matched automatic completion of feeding, measuring, filling, bag making, date printing, inflatable and exhaust), counting, finished product output full packaging process.
Main technical parameters：
机型（Type） | JC-VD420 | 气压（Air consumption） | 0.65Mpa |
制袋长度（Bag length） | 60-300mm(L) | 耗气量（Gas consumption） | 0.3m3/min |
制袋宽度（Bag width） | 60-200mm(W) | 电压（power voltage） | 220VAC\50Hz |
薄膜宽度（Max width of roll film） | 420mm | 功率(Power) | 4KW |
包装速度（packing speed） | 5-60包\分（bags\min） | 外型尺寸（Dimension） | 1530(L)X1100(W)X1600(H)mm |
计量范围（Measuring range） | 3000ml | 机器重量(Net weight) | 450kg |
Packing range: Suitable for food, chemical products, liquid material automatic packaging, such as peanut butter, milk, tomato sauce, water, olive oil, suitable for cooking oil, jam, sauces, etc.
Sample:
Packing：
