3 Layer Co-Extrusion Haul-off Rotary Plastic Film Blowing Machine
APPLICATION
This machinery applicable for the material as LDPE, LLDPE, HDPE, MLLDPE, EVA, EAA and so on. It's widely used to manufacture Composite film basic material, Liquid film, Shrink film, Protective film, Cable film, High molecular adhesive film and Multi-functional Industrial film product. The best quality can better meet customers' requirement for High-precision, High-speed color printing, Composite and Coated products.
Auto roller changing system is easy to operate. Save labor, Production efficiency is higher. Barrel ceramic heating and huaf off rotary make the film more smoothly and uniformity.
FEATURES
The tractor adopts horizontal swing rotation which replaces the die rotation and simplifies die structure, It solves the problem of leakage, poor sealing and maintenance and improve the quality of film.
EPS photoelectric deviation correcting system ensure the film winding regularity.
Air cushion type guide steel roller and The new-type film flattening roller rotary steering.
High-precision die and efficient air ring cooling system, Ensure the film uniformity and output efficiency.
Specification
| Model | 55-2-65-1-2200 |
|
| Screw Diameter (mm) | 55*2, 65*1 |
|
| Screw L/D Ratio | 55-28:1 65-30:1 |
| Screw Speed (r/min) | 55-12-120 65-12-125r/min |
|
| Main Motor (kw) | 55-30, 65-37 |
|
| Extruding Output (kg/h) | 240 |
| Die diameter (mm) | 450 |
| Film Thickness (mm) | 0.02-0.20 |
| Max Folding Width (mm) | 2000 |
| Rotating Method | Haul off rotary |

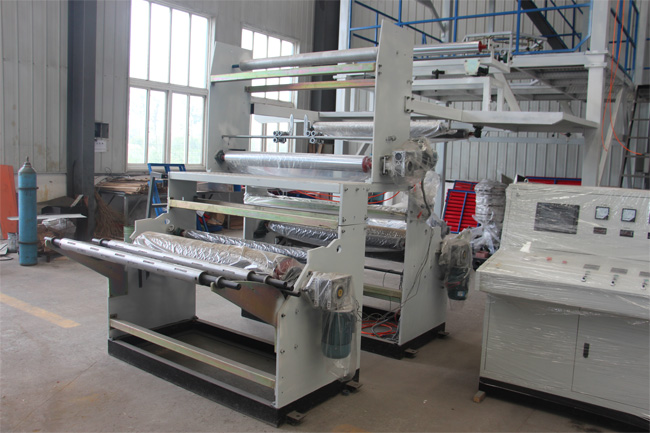

| Winding type | New Type Friction single Winder |
| Total Power (kw) | 180 |
| Actual power (kw) | 90 |
| Overall Size (m) | 11X6X12 |
| Weight (kg) | 15000 |
Protective measures
In order to protect the operater, We set the railing on the film blowing machine. The height is 70mm.
The rotating disk covering the dangerous area.

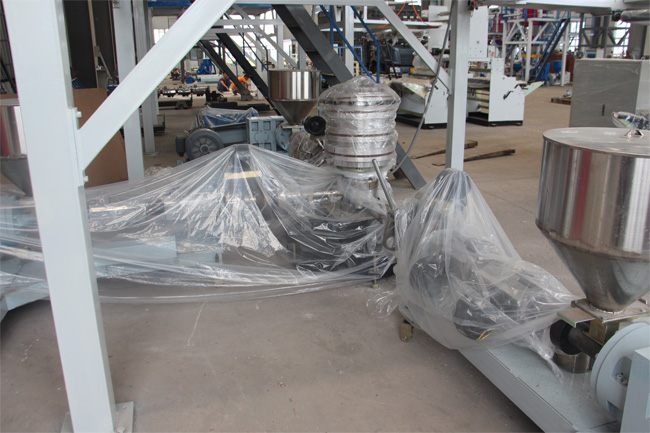

Packaging detail
All the frame packaed with packaging film. Easy damage component like die head packed in the box with plastic foam.
