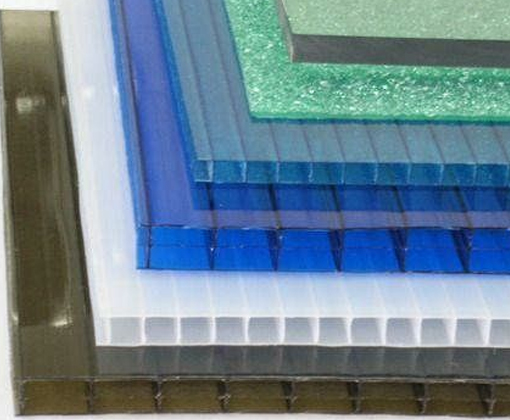

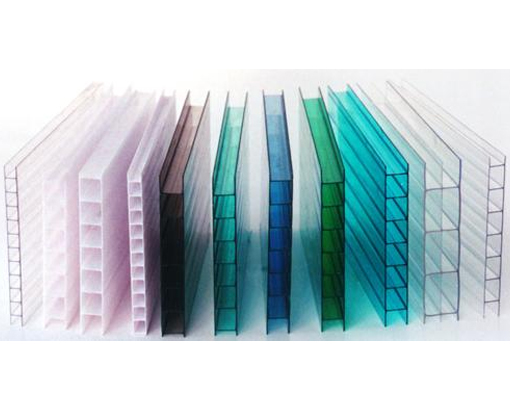

PC multiwall sheet is made up of high-performance engineering plastic PC resin. It prosses the character of high transparency, light,shock resistance,sound insulation,heat protection,fire resistance,ageing resistance and so on. it is a kind of plastic sheet with high technology ,outstanding performance, energy conservation and environmental protection.

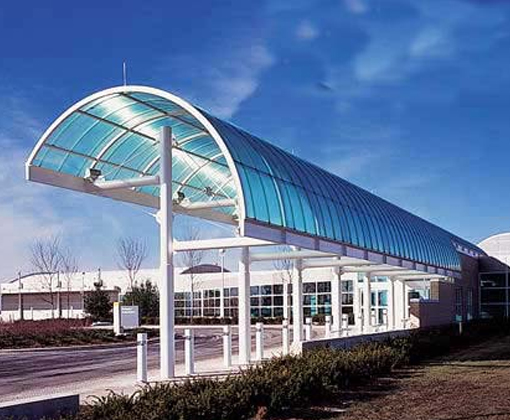

PC multiwall sheet is widely applied to construction around the word. It has the incomparable advantages with other constrution materials. It is widely used for green house , industry factory building ,decoration,sign board,packing awning,gym, swimming poor,exhibition lighting,telephone booth, sound inslation of expressway etc.
Features of products:
Light transmission: the light transmission reaches 12%~82% depending upon color and thickness.
Thermal insulation: practical hollow form reduces the energy consumption, therefore, saves the energy cost.
Fire retardancy: fire retardant grade B1 is decided by the national Gb8624-97 test, without fire drop nor poisonous gas.
Impact resistance: The impact strength of pc sheet is 250~300 times as much as ordinary glass’s.
UV-protection: attributing to proprietary UV surface, nature pc sun sheet remains perfect mechanical and optical performance after exposed to extreme weather for a long time.
Sound insulation: the hollow form and polycarbonate resin offer significant advantage for sound insulation.
Weather ability: It has super-weather ability , which maintain excellent performance in wide temperature range from -40℃~120℃.
Easy installation: Easy to install and can be cold bent.
Features of products:
Thickness（mm） | Weight (kg/㎡) | Length（mm） | Width(mm) | Mini curving radius(mm) | Light transmission %(±3%) |
Clear | Opal | Blue | Blue-green | bronze | Light-green |
4 | 1 | 6000 | 2100 | 700 | 80 | 57 | 45 | 55 | 55 | 45 |
6 | 1.3 | 6000 | 2100 | 1050 | 79 | 56 | 36 | 50 | 53 | 42 |
8 | 1.5 | 6000 | 2100 | 1400 | 78 | 52 | 30 | 47 | 51 | 40 |
10 | 1.7 | 6000 | 2100 | 1750 | 77 | 44 | 25 | 42 | 48 | 35 |
