Application and properties:
1.This model plastic crusher has wide application and is used for crushing and recycling various plastic products and old materials.Such as sponge,fiber,clothes, medical syringe and so on.
2.The entrie machine is made of steel and features stable performance and long service life. and the machine performance won't be dropped by granulating materials after long term work.
3.Adopt heavy-load bearing and oil seal with noise-isolating board,effectively prevent vibration and noise,assure to protect the product from oil.
4.Adopt electric control safe design,the motor is installed with overload protective device and power supply interlock protective design for assuring safety when cleaning.
5.The cutter is flexible and adjustable, and can be sharpened repeatedly with ultra long service life. It is capable of easily crushing and cutting soft and hard plastic.
6.Combine separated design, the materials falling door and filter of granulating chamber are easily for disassembling and cleaning. The feet are installed with slide wheels with convenient movement.
Specifications:
Model | Diameter of Crushing Chamber(mm) | Crushing Ability(kg/h) | Motor Power(kw) | Fixing Cutter(pcs) | Flexible Cutter(pcs) | Mechanical Dimension(mm) | Weight (kg) |
PC300A | 310x245 | 100-250 | 5.5 | 2 | 9 | 900x760x1200 | 450 |
PC400A | 410x260 | 200-450 | 7.5 | 2 | 12 | 950x860x1300 | 550 |
PC500A | 510x285 | 360-720 | 11 | 4 | 15 | 1110x970x1450 | 750 |
PC600A | 610x285 | 470-870 | 15 | 4 | 18 | 1110x1070x1450 | 950 |
Motor power brand is Shanghai Yexiang brand. |
Voltage is 380v,3 phase,50Hz.(we can customized) |
Blades materials is Spring steel. |
Bearing model is FC214. |
Rotary speed is 720rpm. |
Standard sieve screen hole diameter is 10mm(we can customized) |
Electric equipment is CHNT. |
Crusher body materials is A3 steel plate. |
CE certificate |
Combine front and rear noise isolating design with extremely low noise,adopt electric control safety design,motor is installed with overload protective and power supply interlock protective device for protecting the motor,cutter and operator. |

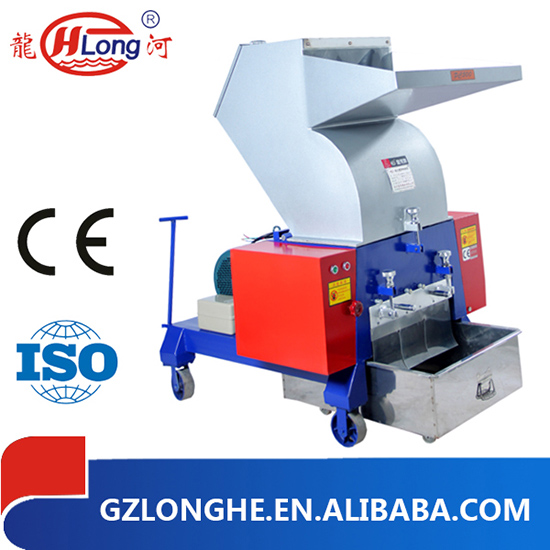

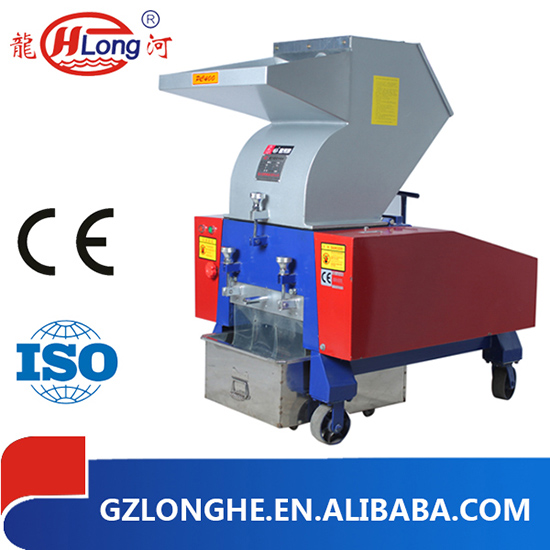

Detail of picture:
