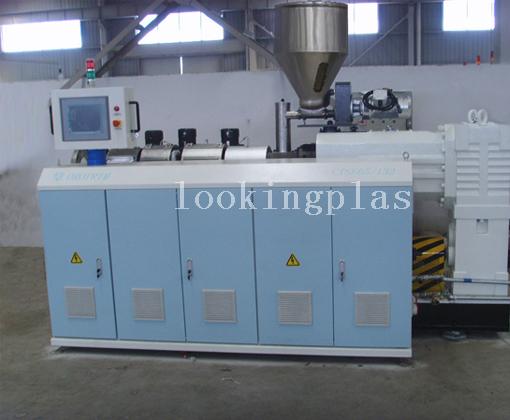

FCTSE65/132 extruding machine 1060 Favorites

Product Categories: PVC Wood Plastic Profile Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Future Materials Inc.
Company type： Manufacturer	Credit：
Main products：FMI offers turn-key extrusion system of plastic composite including single-screw and twin-screw extruder, high output and precision extrusion dies by adopting unique patented ,proprietary technology and advanced computer-aided engineering (CAE).

Get Quotation

Contact Supplier

To：	S
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Model	FCTSE 65/132-26
Screw diameters(mm)	62/132
Screw effective length(mm)	1625
Motor(kw)	37 AC
PRM(r/min) Counter-rotating	1～39
Max Speed (kg/h)	275
PE WPC Output(kg/h)	150 - 300
Control Panel	PLC/touch screen/Synchronous feeding and pulling (option)
Anti-leaking Venting	Option
Anti-leaking type	Twin screws driven by variable speed motors
Vacuum power KW/motor/Vacuum Mpa	2.2/AC/0 ~ -0.08
Heat/Cool Zone:(with adaptor)	5/3
Cooling	Air cool
Heating(kw)	38
Barrel material	Tungsten carbide/Nitride bimetallic
Screw material	Tungsten carbide/Nitride bimetallic
Barrel screw nitride depth(mm)	0.6～0.7
Screw core temperature	Oil heating/cooling
Screw design	Screw designed by experience and computer aided engineering(CAE) software with composite rheology, screw geometry and processing parameters so that our screw technology is as good as the leading edge in the world.
Feeding system	Twin screw augers
Melt pressure	Melt pressure transducer with T/C
Center height(mm)	1100
Overall dimensions(length x width x height) (mm)	4235×1520×2450
Weight(kg)	4500
Materials can be run	PE,PP, PVC(Virgin or recycled) with natural fibers, fibers, such as wood flour, rice hull, straw, etc.
Material format	Pellet, powder, or flakes
