Material:
1)38CrMoAL(JIS SACM645)
2)9Cr18MoV
Alloy hardness:HRC58°-66°
Alloy thickness:1.5-3mm
Wear,corrosion,rust holes double alloy barrel.
Nitriding Hardness:HV950-1050
Nitriding depth:0.50mm-0.80mm

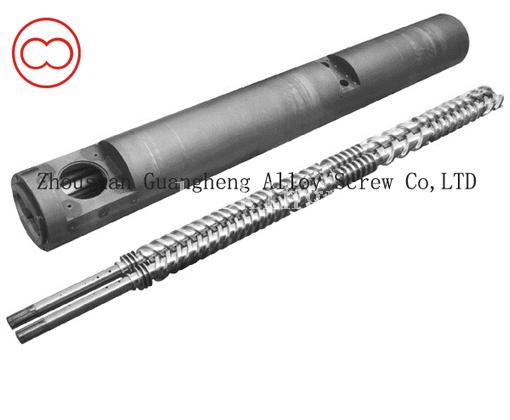

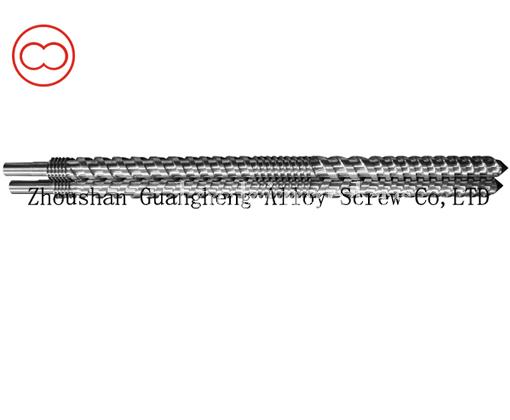

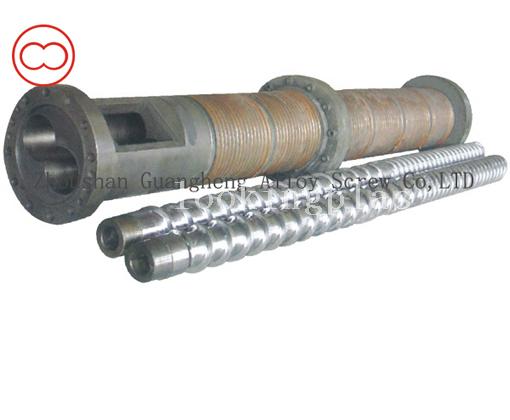

Parallel twin-screw,barrel specifications
Φ45/2-Φ200/2
Screw the structure and compression ratio can be designed according to different materials and different products.
Scope:PVC Wood,PE wood,ultra-high molecular sheet,unburned pallets,one or more calcium than two pinch,50-400 copies per calcium pipe,50-300 calcium profiles,soft PVC sheet wood,PVC foam board and other common plastics,PP,PE,ABS,PVC,raw material granulation,production of pipes,profiles,sheets and other products.
