Features
1 with gravimetric logging unit
2 bigger screw length L/D=38,barrier screw design and with two mixers
3spiralgrooved bush in intake zone
4 special disc calibration sleeve

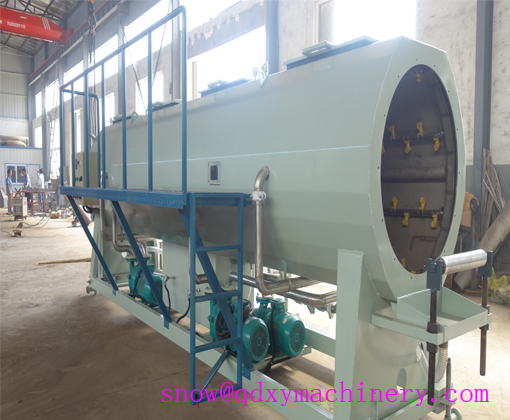

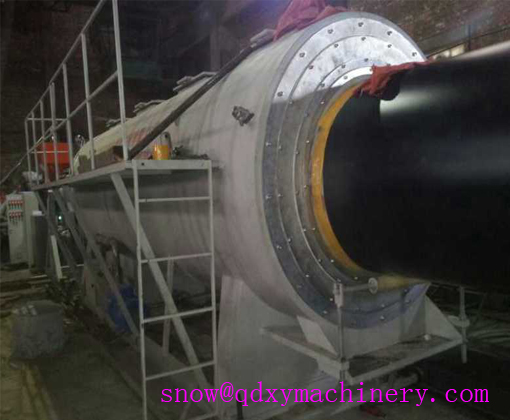

5 vacuum tank with special pre-cooling tank
6 servo motor driver belt haul-off with stop device
7 flying knife cutter
8 synchronization is available between haul-off and extruder
9 maximum line speed 50m/min
Main parameter :
Item | SJ75 | SJ125 | SJ250 | SJ630 |
Max Dia. Of pipe(mm) | 75 | 125 | 250 | 630 |
Main machine | SJ65/30 | SJ75/30 | SJ90/30 | SJ120/30 |
Motor power(kw) | 60 | 75 | 160 | 260 |
Motor type | Direct current model | Direct current model | Direct current model | Direct current model |
Max. capacity(kg/h) | 160 | 260 | 400 | 900 |
Traction speed(m/min) | 0.5 | 0.3 | 0.2 | 0.1 |
Max. traction(N) | 10000 | 15000 | 30000 | 40000 |
Cutting type | Disc type cutting | Disc type cutting | Planet cutting | Planet cutting |
length(mm) | 22000 | 34000 | 44000 | 58000 |
Our advantage
1. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines,plastic production line.
2.Our plastic extrusion lines based on Plastic Extruders:Single Screw Extruder.
3.Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe and so on.
4.Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.
5.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
