PE series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc.
(a) Feeding machine

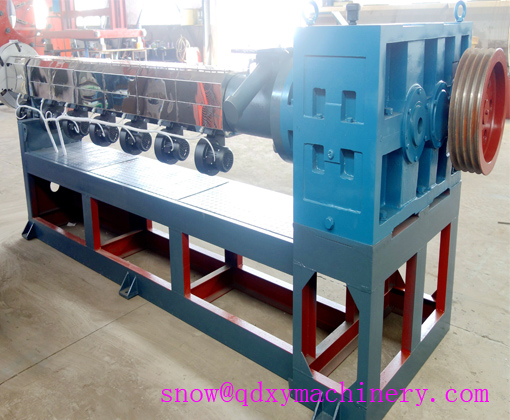

(b) single-screw extruder
(c) Mould
(d) Vacuum Calibrating tank
(e) Hauling off machine
(f) Printing machine
(g) Pipe cutting machine
(h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.
Model | Pipe ranger (mm) | Extruder | Max.output(kg/h) | Max.hauling speed(m/min.) | Extruder powder (KW) |
PEG-63 | 20-63 | SJ65/33 | 150 | 12 | 55 |
PEG-110 | 20-110 | SJ65/33 | 180 | 10 | 75 |
PEG-160 | 75-160 | SJ75/33 | 350 | 8 | 110 |
PEG-250 | 90-250 | SJ75/33 | 350 | 5 | 110 |
PEG-315 | 110-315 | SJ90/33 | 450 | 3 | 160 |
PEG-450 | 160-450 | SJ90/33 | 450 | 2 | 160 |
PEG-630 | 315-630 | SJ120/33 | 850 | 1.6 | 280
|
