HDPE Double Wall Corrugated Pipe Production Line
-high speed
HDPE Double Wall Corrugated Pipe Production Line
Features of HDPE double wall corrugated pipe line:

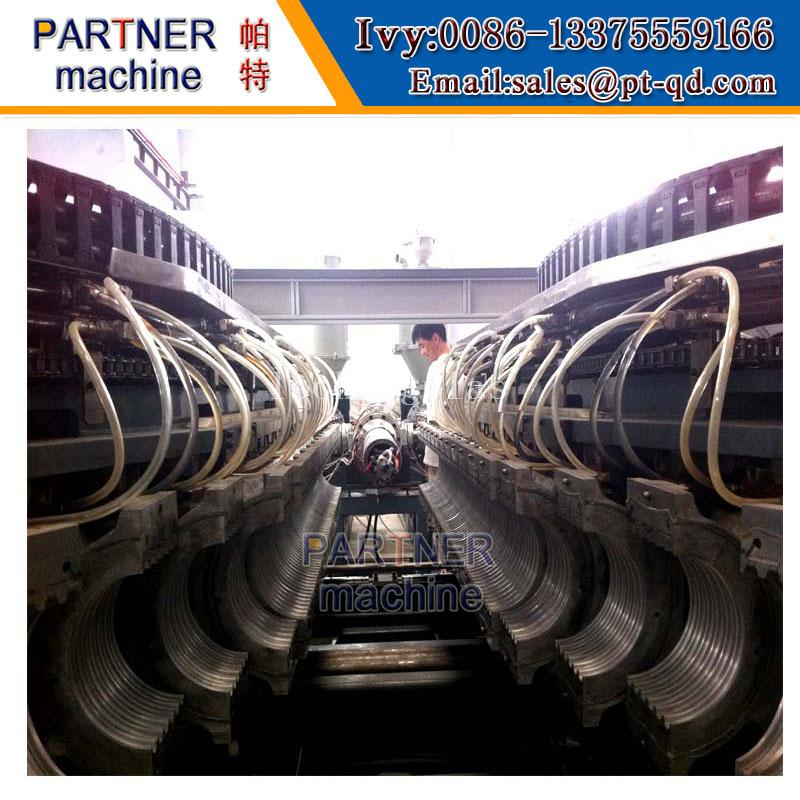

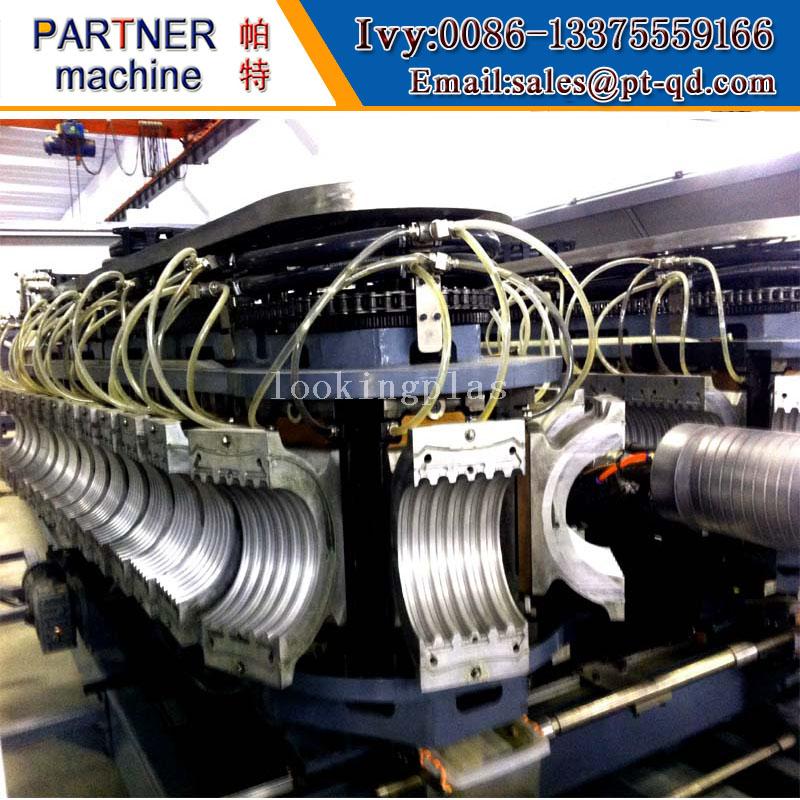

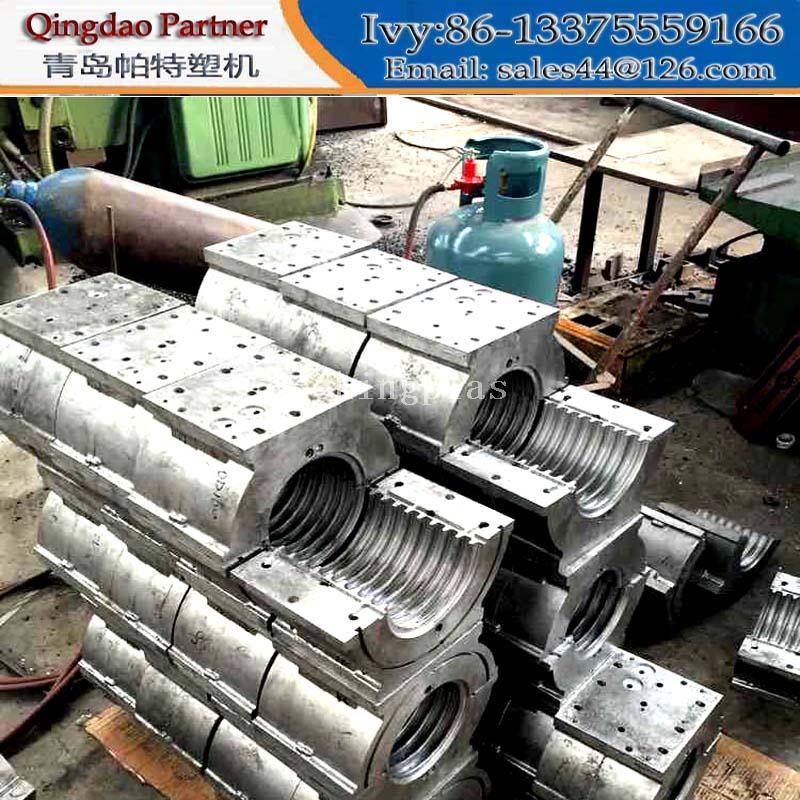

Qingdao Deyili Plastic Machinery Co. Ltd developed the new generation double wall corrugated pipes line combining with current technology features. The features of production line are: double-layer socket unique socket structure stable production high efficiency horizontal mould block and water circulation for cooling.
Main Technical Data of HDPE double wall corrugation pipe production line:
Model | Pipe range(mm) | Extruder And L/D | Capacity (kg/h) | Installed power (kw) | Overall dimension (L×W×H) |
SBG-160 | 75-160 | SJ65/34 SJ65/34 | 500 | 230 | 23×4×4 |
SBG-250 | 100-250 | SJ65/34 SJ75/36 | 600 | 250 | 26×4×4 |
SBG-500 | 200-500 | SJ90/34 SJ75/36 | 700 | 480 | 33×4×4 |
SBG-600 | 200-600 | SJ90/34 SJ75/36 | 900 | 500 | 36×4×4 |
SBG-1000 | 710-1000 | SJ120/34 SJ100/33 | 1200 | 620 | 40×4×4 |
