Home > Product Categories > LLDPE/HDPE/ LDPE ABA Double Screw Three-layer C-extrusion Film Blowing Machine

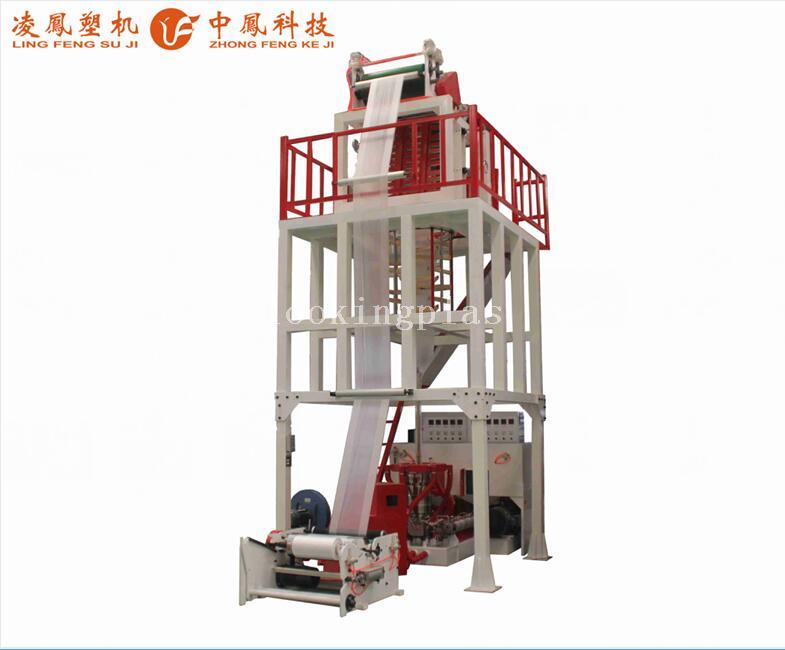

LLDPE/HDPE/ LDPE ABA Double Screw Three-layer C-extrusion Film Blowing Machine 2573 Favorites

Product Categories: Multi-layers Blowing Film Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Tianjin Port,China

Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Film Blowing Machine & Bag Making Machine

Get Quotation

Model	LF-ABA55	LF-ABA60	LF-ABA65
Suitable Material	LLDPE/LDPE/HDPE	LLDPE/LDPE/HDPE	LLDPE/LDPE/HDPE
Screw Diameter(mm)	55	60	65
Max Screw Speed(r/min)	15-150	80	80
Traction Shaft Length(mm)	450/650/800	1000/1300/1500	1000/1300/1500
Max Film Width (mm)	370/570/700	900/1200/1400	900/1200/1400
Film Thickness(mm)	0.01-0.1	0.01-0.1	0.01-0.1
Max Extrusion(kg/hr)	75	85	115
Ratio of Length to Diameter(mm)	31:1	33:1	32:1
Die head diameter	290/390	290/320	290/320
Extruder power(kw)	11x2 or 15x2	15x2	18.5x2 or 22x2
Traction Motor Power(kw)	2.2	2.2 or 3	2.2 or 3
Heating Device Power(kw)	16.2	16.2	27
Winder Motor Power（kw）	2.2	2.2	2.2
CNC Accuracy	1000g/+1.5g	1000g/+1.5g	1000g/+1.5g
Max winding diameter(mm)	1000	1000	1000
Overall Dimensions(mm)	5700 x 2680 x 6200	6000 x 3765 x 6200	6000 x 3765 x 6200
Total Weight(kg)	5000	5400	5400

Full-automatic winding machine for film blowing machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Plastic Extrusion Quantity CNC System

Raw material：plastic masterbatch	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

LLDPE/HDPE/LDPE High Speed Single Screw Film Blowing Machine

Raw material：LLPE/HDPE/LDPE plastic masterbatchs	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Double channel four axis unwinding cold cutting full automatic punching bag making machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China
