Home > Product Categories > Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine

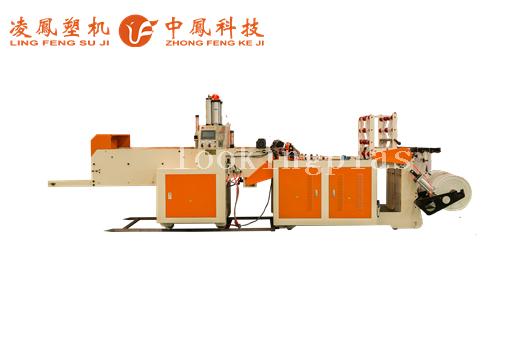

Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine 2179 Favorites

Product Categories: T-shirt Bag Making Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Tianjin Port,China

Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Film Blowing Machine & Bag Making Machine

Get Quotation

Model	DP-300x2	DP-350x2	DP-450x2
The max width of the bag (mm)	300	350	450
The max length of the bag (mm)	650	650	750
Bag making speed (pcs/min)	100-260	100-260	100-260
Film thickness (mm)	0.02-0.08	0.02-0.08	0.02-0.08
Total power (KW)	17.1	17.1	18.9
Gas consumption (m3/min)	0.6	0.6	0.7
Bag making roll quantity (roll)	2	2	2
Over Dimensions(mm)	5650×1340×1890	5650x1470x1890	5840x1670x1890
Weight (kg)	1898	2012	2586
Main inverter power (kw)	1.5	1.5	1.5
Conveyer inverter power (kw)	2x0.75	2x0.75	2x0.75
Inverter quantity (sets)	3	3	3
Servo motor power (kw)	2.6	2.6	2.6
Servo motor quantity (sets)	3	3	3
Pressure Cylinder Model	KPB-80-165-20-5T	KPB-80-165-20-5T	KPB-80-165-20-5T
Pressure Cylinder Quantity	2	2	2
Work voltage (V)	AC 220V	AC 220V	AC 220V

Common Type Single Channel Auotmatic Punching T-shirt Bag Making Machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Double channel four axis unwinding cold cutting full automatic punching bag making machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Standard Type Double Channel Automatic Punching T-shirt Bag Machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Full-automatic bag-on-roll making machine(with paper core)

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China
