Home > Product Categories > Common Type Single Channel Auotmatic Punching T-shirt Bag Making Machine

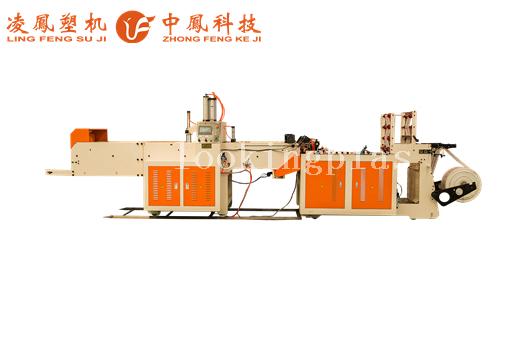

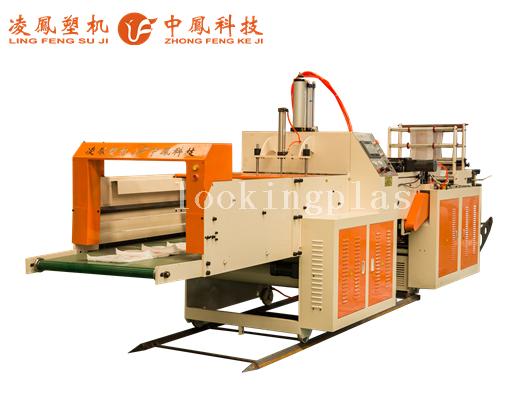

Common Type Single Channel Auotmatic Punching T-shirt Bag Making Machine 2870 Favorites

Product Categories: T-shirt Bag Making Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Tianjin Port,China

Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Film Blowing Machine & Bag Making Machine

Get Quotation

Model	SP-550	SP-650	SP-1000
The max width of the bag (mm)	550	650	1000
The max length of the bag (mm)	1000	1000	1000
Bag making speed (pcs/min)	100-260	100-260	100-260
Film thickness (mm)	0.02-0.08	0.02-0.08	0.02-0.08
Total power (KW)	11.97	11.97	12.9
Gas consumption (m3/min)	0.6	0.6	0.7
Bag making roll quantity (roll)	1	1	1
Over Dimensions(mm)	5650x1240x1890	5650x1340x1890	6600x1670x1890
Weight (kg)	2004	2132	2432
Main inverter power (kw)	1.5	1.5	1.5
Conveyer inverter power (kw)	0.75	0.75	1.5
Inverter quantity (sets)	2	2	2
Servo motor power (kw)	3.0&2.6	3.0&2.6	5.0&2.6
Servo motor quantity (sets)	2	2	2
Pressure Cylinder Model	KPB-80-165-20-5T	KPB-80-165-20-5T	KPB-80-165-20-5T
Pressure Cylinder Quantity	1	1	2
Work voltage (V)	AC 220	AC 220V	AC 220

Double channel four axis unwinding cold cutting full automatic punching bag making machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

High-speed Double Channel Automatic Punching T-shirt Bag Making Machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Standard Type Single Channel Automatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port, China

Full-automatic bag-on-roll making machine(with paper core)

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China
