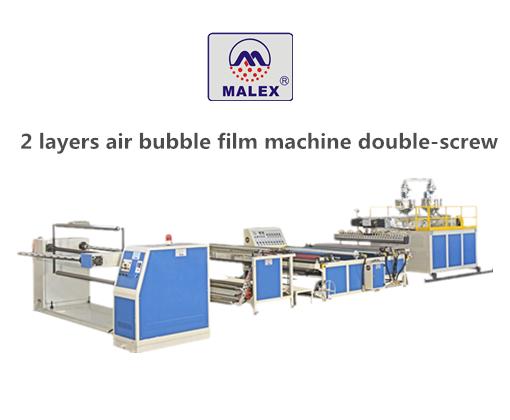

Malex are the well-known brand of air bubble film machinery and kraft paper bubble envelope machinery in China.
We are the professional supplier with latest technology and perfect after-sale-service.
Malex can manufacture the machine according to your requirement, such as width 1000mm-3000mm, 2 layers-7 layers bubble film, side extruder type or top extruder type, single-screw design or double-screw design.
Model | Max. Width | Screw Diameter(mm) | Screw & Barrel material | Capacity (kg/hr) | Line Speed (m/hr) | Heating Power (kW) | Consumption Power (kW) | Layer | Weight (kg) |
MX-B100T | 1000 | Φ65mm/Φ55mm | 38CrMOALA | 67-100 | 700-1800 | 71 | 35-43 | 3 | 5500 |
MX-B125T | 1250 | Φ65mm /Φ55mm | 38CrMOALA | 84-100 | 700-1800 | 71 | 35-43 | 3 | 6200 |
MX-B150T | 1500 | Φ75mm /Φ55mm | 38CrMOALA | 100-120 | 700-1800 | 80 | 42-52 | 3 | 6700 |
MX-B160T | 1600 | Φ75mm /Φ55mm | 38CrMOALA | 108-120 | 700-1800 | 80 | 42-52 | 3 | 6900 |
MX-B200T | 2000 | Φ90mm /Φ65mm | 38CrMOALA | 125-150 | 700-1500 | 95 | 55-65 | 3 | 8900 |
MX-B250T | 2500 | Φ110mm /Φ75mm | 38CrMOALA | 140-200 | 600-1500 | 130 | 73-85 | 3 | 10200 |
MX-B300T | 3000 | Φ120mm /Φ80mm | 38CrMOALA | 160-230 | 600-1500 | 148 | 78-88 | 3 | 11500 |
Why Malex is your best choice?
1. Outstanding lineal speed & output.
Malex machine maximum lineal speed is 30m/min with stable quality and long-time running.
2. Screw design.
Malex screw is under special design can be worked with 100% recycled raw material. The screw is processed under tempering 850℃ for 4 hours.
3. T-die design.
Malex T-die is processed with quenching and high temperature tempering HB230℃-260℃, control the thickness by bolts, all the film will be very even.
