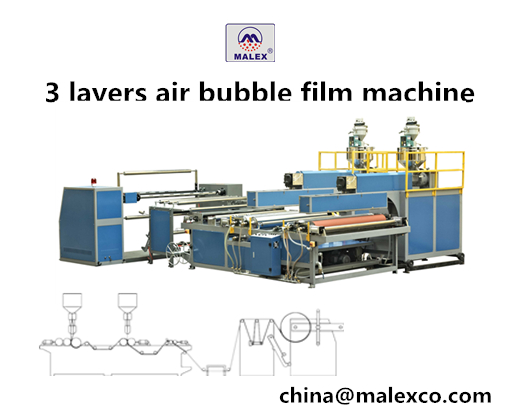

Malex are the well-known brand of air bubble film machinery and kraft paper bubble envelope machinery in China.
We are the professional supplier with latest technology and perfect after-sale-service.
Malex can manufacture the machine according to your requirement, such as width 1000mm-3000mm, 2 layers-7 layers bubble film, side extruder type or top extruder type, single-screw design or double-screw design.
Model | Max. Width | Screw Diameter(mm) | Screw & Barrel material | Capacity (kg/hr) | Line Speed (m/hr) | Heating Power (kW) | Consumption Power (kW) | Layer | Weight (kg) |
MX-W100T | 1000 | Φ55mm/Φ55mm / Φ55mm | 38CrMOALA | 65-120 | 700-1800 | 83 | 40-47 | 3 | 6300 |
MX-W125T | 1250 | Φ55mm /Φ55mm / Φ55mm | 38CrMOALA | 83-120 | 700-1800 | 83 | 42-49 | 3 | 7000 |
MX-W150T | 1500 | Φ65mm /Φ65mm / Φ55mm | 38CrMOALA | 100-160 | 700-1800 | 95 | 53-60 | 3 | 7700 |
MX-W160T | 1600 | Φ65mm /Φ65mm / Φ55mm | 38CrMOALA | 108-160 | 700-1800 | 95 | 55-65 | 3 | 7900 |
MX-W200T | 2000 | Φ75mm /Φ75mm / Φ65mm | 38CrMOALA | 135-210 | 700-1500 | 112 | 70-80 | 3 | 10000 |
MX-W250T | 2500 | Φ85mm /Φ85mm/ Φ75mm | 38CrMOALA | 150-240 | 700-1500 | 143 | 80-90 | 3 | 11400 |
MX-W300T | 3000 | Φ90mm /Φ90mm / Φ80mm | 38CrMOALA | 160-260 | 700-1500 | 150 | 90-98 | 3 | 12500 |
Why Malex is your best choice?
1. Outstanding lineal speed & output.
Malex machine maximum lineal speed is 30m/min with stable quality and long-time running.
2. Screw design.
Malex screw is under special design can be worked with 100% recycled raw material. The screw is processed under tempering 850℃ for 4 hours.
3. T-die design.
Malex T-die is processed with quenching and high temperature tempering HB230℃-260℃, control the thickness by bolts, all the film will be very even.
