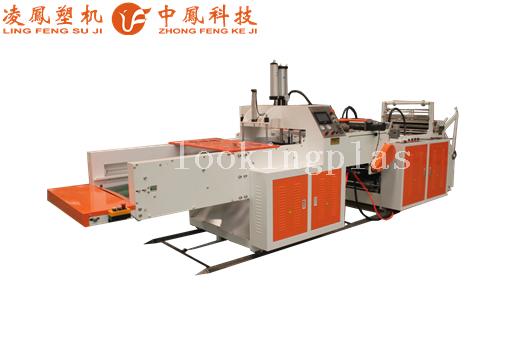

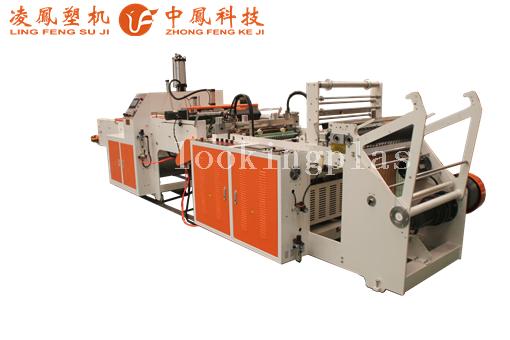

High Speed Single Channel Automatic Punching T-shirt Bag Making Machine 2765 Favorites

Product Categories: T-shirt Bag Making Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Tianjin Port, China

Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Film Blowing Machine & Bag Making Machine

Get Quotation

Model	HSFP-550	HSFP-650	HSFP-1000
The max width of the bag (mm)	550	650	1000
The max length of the bag (mm)	320-1000	320-1000	600-1500
Bag making speed (pcs/min)	100-300	100-300	80-200
Film thickness (mm)	0.02-0.08	0.02-0.08	0.02-0.08
Total power (KW)	10.71/2.8	12.11/2.9	17.07/4.2
Gas consumption (m3/min)	0.6	0.6	0.7
Bag making roll quantity (roll)	1	1	1
Over Dimensions(mm)	6500x1350x1950	6500X1450X1950	7130x1690x1950
Weight (kg)	2352	2480	2748
Main inverter power (kw)	1.5	1.5	1.5
Conveyer inverter power (kw)	2x0.75	2x0.75	2x0.75
Inverter quantity (sets)	3	3	3
Servo motor power (kw)	3.0	4.4	4.4
Servo motor quantity (sets)	2	2	2
Pressure Cylinder Model	KPB-80-165-20-5T	KPB-80-165-20-5T	KPB-80-165-5T
Pressure Cylinder Quantity	1	1	2
Work voltage (V)	AV 220	AC 380	AV 380

Standard Type Single Channel Automatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port, China

Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Double channel four axis unwinding cold cutting full automatic punching bag making machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

High-speed Double Channel Automatic Punching T-shirt Bag Making Machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Standard Type Double Channel Automatic Punching T-shirt Bag Machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China
