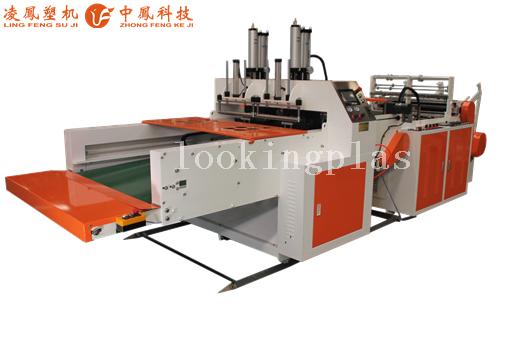

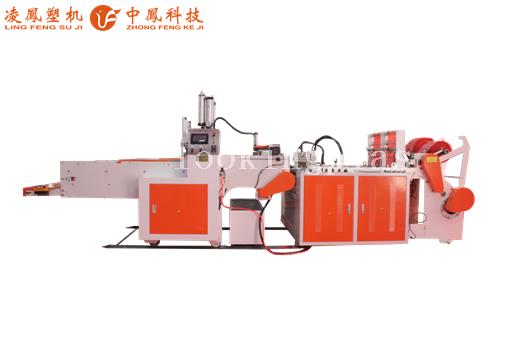

High-speed Double Channel Automatic Punching T-shirt Bag Making Machine 2846 Favorites

Product Categories: T-shirt Bag Making Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Tianjin Port,China

Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Film Blowing Machine & Bag Making Machine

Get Quotation

Model	HDFP-320x2	HDFP-420x2	HDFP-500x2
The max width of the bag (mm)	320	420	500
The max length of the bag (mm)	280-650	280-750	280-900
Bag making speed (pcs/min)	100-400	100-400	100-400
Film thickness (mm)	0.02-0.08	0.02-0.08	0.02-0.08
Total power (KW)	16.28/3.4	19.8/4.2	24.3/4.6
Gas consumption (m3/min)	0.6	0.7	0.7
Bag making roll quantity (roll)	2	2	2
Over Dimensions(mm)	5810x1580x1950	6010x1780x1950	6510x1980x1950
Weight (kg)	2376	2764	3246
Main inverter power (kw)	1.5	1.5	1.5
Conveyer inverter power (kw)	4x0.75	4x0.75	4x0.75
Inverter quantity (sets)	5	5	5
Servo motor power (kw)	3.0	4.4	4.4
Servo motor quantity (sets)	3	3	3
Pressure Cylinder Model	KPB-80-165-20-5T	KPB-80-165-20-5T	KPB-80-165-5T
Pressure Cylinder Quantity	2	2	2
Work voltage (V)	AV 220	AC 380	AV 380

High Speed Single Channel Automatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port, China

Double channel four axis unwinding cold cutting full automatic punching bag making machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Common Type Double Channel Auotmatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Common Type Single Channel Auotmatic Punching T-shirt Bag Making Machine

Raw material：LLPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port,China

Standard Type Single Channel Automatic Punching T-shirt Bag Making Machine

Raw material：LLDPE/HDPE/LDPE	Condition： New
Place of Origin：Langfang	Loading Port：Tianjin Port, China
